2 Player Arcade Cabinet Plans (Full Size DIY PDF + 3D CNC Files)

Description

2 Player Arcade Cabinet Plans – Full Size DIY Build (PDF + 3D Files)

Build your own 2 player arcade machine with these detailed cabinet plans, perfect for DIY builders and CNC specialists. Designed with authentic arcade proportions and easy-to-follow layouts, this cabinet is built to last and ready for customization.

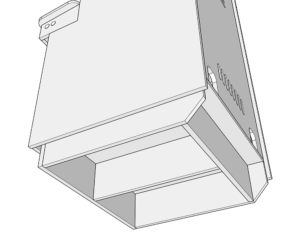

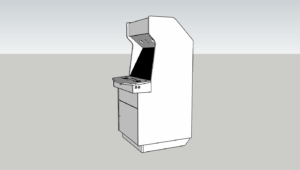

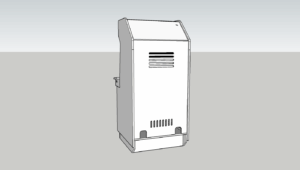

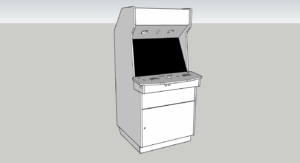

Cabinet Dimensions

• Height: 1680mm

• Width: 830mm

• Depth: 845mm

• Material: 18mm MDF (recommended, but other materials may be used)

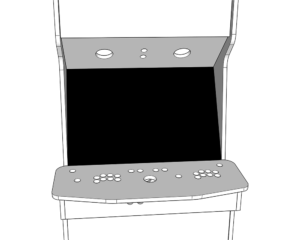

Screen & Controls

• Fits a 32″ TV or monitor (requires custom VESA holes)

• Arcade buttons: 28mm standard

• Joystick options: HAPP Competition joystick or Zippy Long Shaft joystick

• Joystick panel can be routed for correct height depending on model

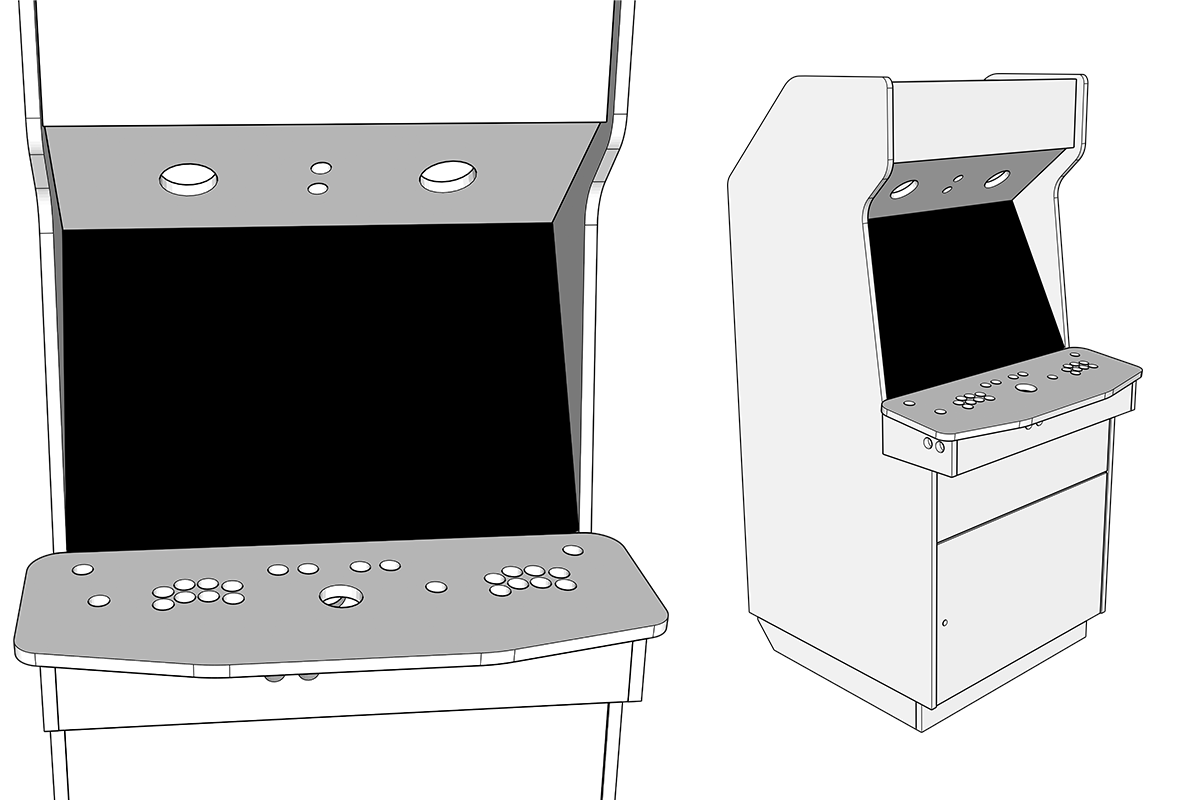

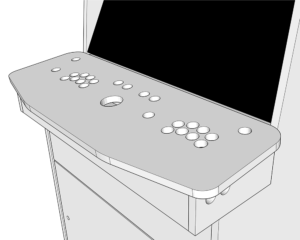

• Multiple control panel versions available:

  • Full button configuration with trackball

  • 8-button layout (no trackball)

  • 6-button layout (no trackball)

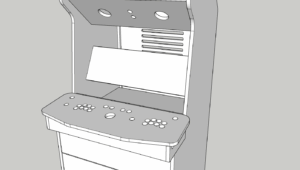

Button Layouts & Features

• Top 6 buttons: Coin/Back, Start 1, Select, Exit, Start 2, Coin/Back

• Side buttons: Pinball flippers & nudge

• Front buttons: Left & right mouse click

• Near speakers: Search & Pause

• PC Power Button: 28mm arcade button (top of cabinet)

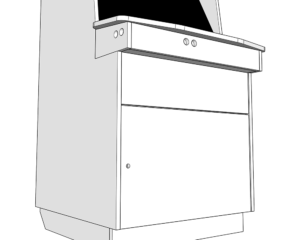

• Cam Lock: 19mm hole on front door

• Trackball Mount: Large center hole

What’s Included

✔️ PDF ready-to-cut plans (easy for manual cutting or CNC use)
✔️ 3D CAD files (AutoCAD & SketchUp formats)
✔️ Multiple panel configurations to suit different play styles
